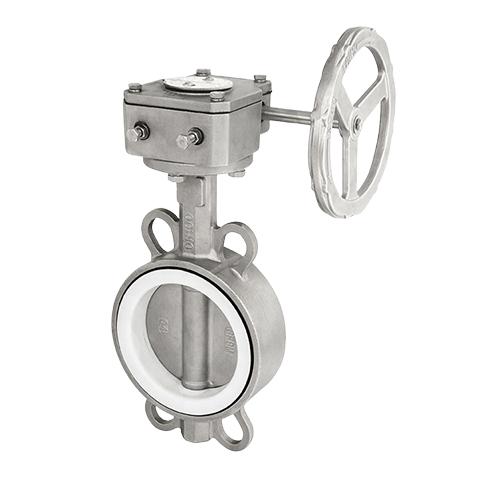

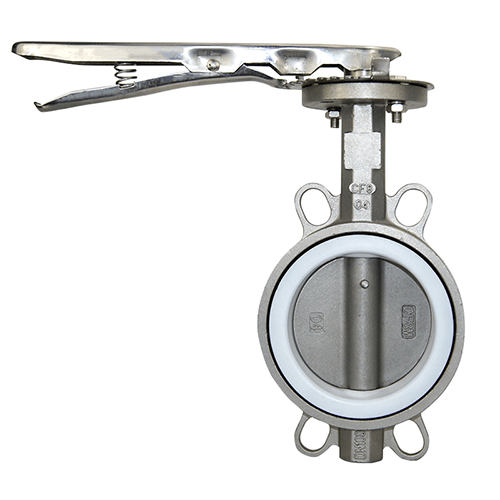

Model : TT-8M, L-TT-8M
Materials |
|
| Partname | Material |
| Body | Stainless Steel |
| Disc | Stainless Steel |
| Stem | Stainless Steel |
| Seat | PTFE |
| PIN | Stainless Steel |
| Bushing | PTFE |
| O-Ring | NBR |
Technical Data |
||||
| DN Nominal | 2” – 40” | 2”-32” | mm (inch) | |
| PN Nominal Pressure | 1.0 | 1.6 | Mpa | |
| Testing Pressure | Shell | 1.5 | 2.4 | |
| Sealing | 1.1 | 1.76 | ||
| Working Temperature | -15 + 150 | |||
| Suitable Mediums | Fresh water, Sewaga, Sea water, Air, Vapour, Food,Medicine, oils,Acids,Alikalis,Salt, etc. | |||
| Operation methods | handle, electric, peneaualic and liquid-driving | |||
| Connection | JIS10K, ANSI150P, PN10/16 | |||
Dimension |
mm |
||||||
| Size | A | B | C | D | E | F | K |
| 2″ | 161 | 80 | 43 | 32 | 57.15 | 12.6 | 77 |
| 2 ½” | 175 | 89 | 46 | 32 | 57.15 | 12.6 | 77 |
| 3″ | 188 | 95 | 46 | 32 | 57.15 | 12.6 | 77 |
| 4″ | 200 | 114 | 52 | 32 | 69.85 | 15.77 | 92 |
| 5″ | 213 | 127 | 56 | 32 | 69.85 | 18.92 | 92 |
| 6″ | 226 | 139 | 56 | 32 | 69.85 | 18.92 | 92 |
| 8″ | 260 | 175 | 60 | 45 | 88.9 | 22.10 | 115 |
| 10″ | 292 | 203 | 68 | 45 | 88.9 | 28.45 | 115 |
| 12″ | 337 | 242 | 78 | 45 | 107.95 | 31.60 | 140 |
| 14″ | 368 | 267 | 78 | 45 | 107.95 | 31.60 | 140 |
| 16″ | 400 | 298 | 102 | 51.2 | 158.75 | 33.15 | 197 |
| 18″ | 422 | 318 | 114 | 51.2 | 158.75 | 38.00 | 197 |
| 20″ | 480 | 349 | 127 | 64.2 | 185.75 | 41.15 | 197 |
| 24″ | 562 | 440 | 154 | 70.2 | 215.9 | 50.65 | 276 |
| 28″ | 624 | 520 | 163 | 66 | 254 | 55.00 | 300 |
| 32″ | 672 | 591 | 188 | 66 | 254 | 55.00 | 300 |
